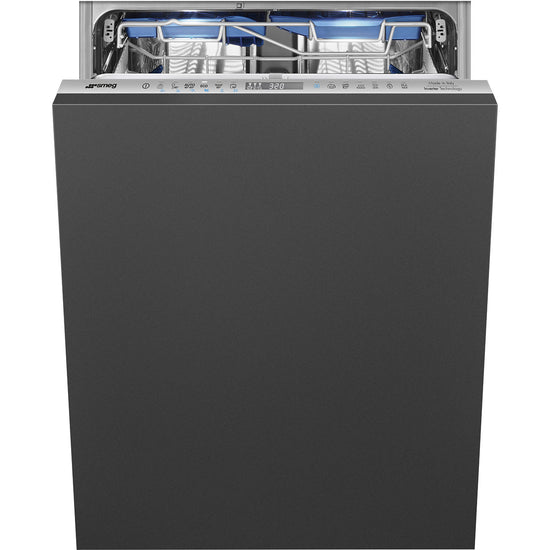

Masina de spalat vase incorporabila Smeg STL324BQLL

PLANETARIUM WASHING SYSTEM

The device, which consists of a circular support and a double high-speed simultaneous-movement spray arm, means that the water reaches every point of the chamber, ensuring excellent washing results and low water consumption.

DESIGN

The new Smeg dishwasher responds to sophisticated washing needs by interpreting a constant evolution in terms of aesthetics, functionality and energy efficiency.

MADE IN ITALY


Smeg dishwashers stand out for their uniqueness in terms of technological innovation and performance, representing a paradigm of Made in Italy excellence. They fit into any type of furniture and perfectly match other Smeg appliances.

ENERGY EFFICIENCY

Raggiungendo la classe B della nuova energy label, la lavastoviglie garantisce la massima efficienza energetica e performaces di lavaggio superiori.

TABLEWARE IN ORDER


The upper basket can be positioned on three different heights to allow optimal hygiene of all types of dishes.

LOAD FLEXIBILITY


The internal structure is designed to guarantee maximum loading flexibility, with foldable inserts and movable elements to house all the dishes, from the most delicate to the most bulky.

99,9% HYGIENE PROGRAM


The 99.9% Hygiene certified program responds to every washing need, allowing you to sterilize dishes at 75 ° C and perfectly sanitize them even for children or allergy sufferers.

SELF CLEAN PROGRAM

The Self Clean program is designed to maintain washing performance unchanged over time, by completing a self-cleaning cycle of the dishwasher.

CLEAN AND SHINE PROGRAM


The Clean & shine function, thanks to an additional rinse, allows you to obtain even brighter dishes.

TRAYS PROGRAM

Specially designed for washing oven trays, the Trays program allows you to optimally wash the most bulky dishes.

FLEXI DUO

The two movable inserts that make up the basket, sliding on separate guides, can be individually adjusted, based on the type of dishes to be washed, thus ensuring maximum loading flexibility.

SILENT PROGRAM

The hydraulic system, the shape of the bottom of the chamber and the use of increasingly high-performance motors means that the noise of the washing cycle is reduced by up to -2 dB when this program is selected.

SELF CLEAN PROGRAM

An automatic program designed for cleaning and maintenance of the machine.

FULL EXPRESS PROGRAM

Fast washing and drying program that takes only 60 minutes. Perfect for everyday use.

EXPRESS 27' PROGRAM

Designed especially for lightly soiled dishes to be washed immediately after use, the quick program washes in just 27 minutes.

TYPE

82 cm high 14 place settings: Number of place settings.
Product Family:Dishwashers
Commercial height:82 cm
Number of place settings:14
Installation:Fully-integrated built-in
Commercial width:60 cm
Kitchen panel:Not supplied
EAN code:8017709309572

AESTHETICS

Color:Silver
Finishing:Silver
Aesthetic:Universale
Front panel colour:Silver (oropal grey)
Door type:Silver (oropal)
LED/display colour:White and blue
Buttons colour:Silver (oropal grey)

PROGRAMME / FUNCTIONS

GREEN EXPRESS Washing programme with low water and energy consumption. Eco: Eco, this economic wash programme uses a low amount of water and energy in order to provide the most environmentally friendly cleaning option. SILENT: Wash cycle suitable for normally soiled dishes, even with dried-on residues. Ensures maximum noise reduction and is therefore ideal if you wish to run it during the night. Quick wash cycle for normally soiled mixed loads such as dishes and pans, even with dried-on residues.
Dishes are washed and dried in 60 minutes. Soak programme: The soak programme provides a rinse to prevent dirt from drying. Dishwasher cleaning cycle. The cycle should be started with the machine empty, without dishes.
It is recommended to run the program every 2-3 months, using special dishwasher detergents. Baking tray programme: for intensive cleaning of the oven trays.
Place the trays in the lower basket of the dishwasher. Auto 45°- 65°: The auto programme regulates the length of a cycle depending on the need for a pre-wash and the number of rinses required. Crystals: The Crystals programme is dedicated to delicate dishes such as glasses and china. Mix: The Mix programme is suitable for mixed crockery and everyday pots and pans, without any particular incrustation. Ultraclean: The Ultraclean option performs a final rinse at a high temperature of 70°c eliminating virtually all bacteria. HYGIENE 99.9% High-temperature washing programme. The 75° rinse guarantees the removal of 99.9% of germs and bacteria. Delicate: Delicate washing program is designed for delicate dishes which are not heavily soiled. Express 27': The Express 27' programme is a quick wash cycle, at low temperatures, for lightly soiled dishes.
N. of programmes:12+2
Soak:Yes
Express 27':Yes
Full express - 60 minutes:Yes
ECO:Yes
Green express:Yes
Quiet (-2 dB):Yes
Auto sensor 45-65:Yes
Mix:Yes
Intense:Yes
Hygiene 99,9%:Yes
Self clean:Yes
Delicate:Yes
Crystal:Yes
Washing temperatures:38, 45, 50, 55, 65, 70, 75 °C
Trays:Yes

OPTIONS

Delay Timer: Option to postpone the start of the desired programme by up to 24 hours in order to programme the dishwasher to run at the desired time. Allows you to enable additional programs when selected together with any wash cycle. After having selected the required wash cycle, press the button ( FlexiZone: The ½ load flexizone allows you to wash a reduced load saving energy, water and time and there are no restrictions on where the items are placed. Clean&Shine option: For perfect cleaning results, this option adds an extra rinse to the wash cycle, which also gives the dishes a higher gloss. The Dry Assist + option, in addition to saving energy, ensures perfect drying of the dishes by opening the door automatically at the end of the washing cycle.
Dry Assist+ option:Yes
Delay timer option:Up to 24 hours
1/2 load FlexiZone option:Yes
Special programs option:Yes
Clean&Shine option:Yes

BASKETS

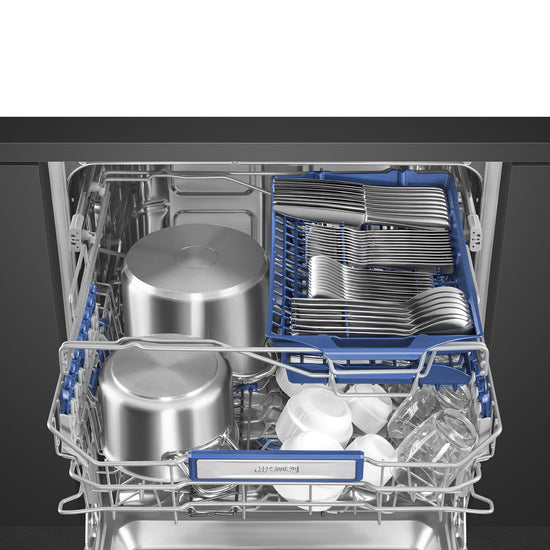

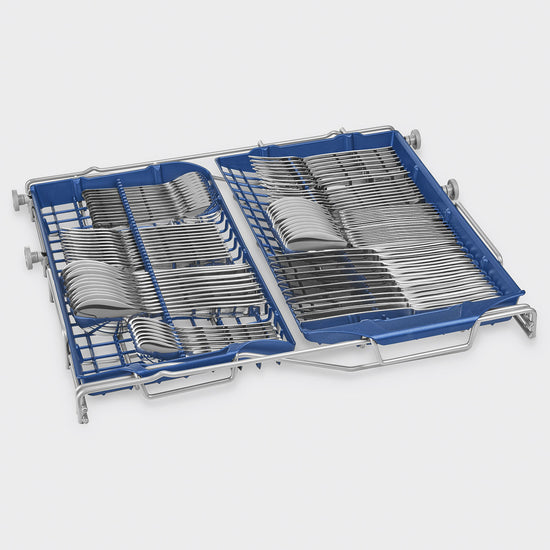

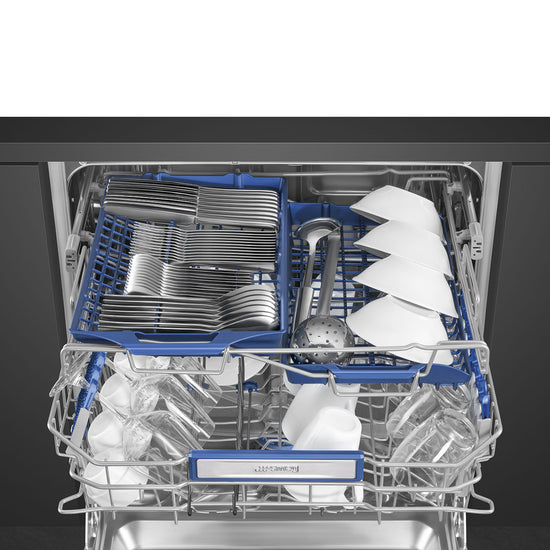

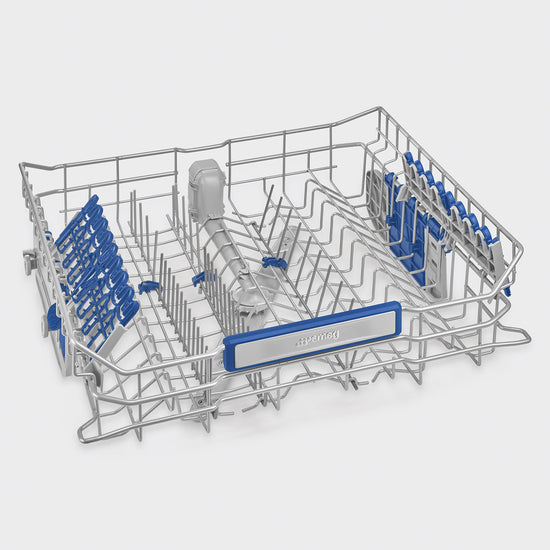

FlexiDuo: The FlexiDuo 3rd cutlery basket allows you to arrange cutlery or small cups, ladles, or bulky utensils however you like: it consists of two separate and moveable modules. The ExtraGlide guides system makes the second basket run even smoother and softer. It facilitates movement even when fully loaded, and thanks to the increased excursion, facilitates the insertion of dishes into the basket. To improve the drying of dishes without leaving stains.
N° baskets:3, FlexiDuo with Easy Glide
Basket colour:Grey
Basket components colour:Grey
Handle:In plastic with stainless steel insert on upper and lower basket

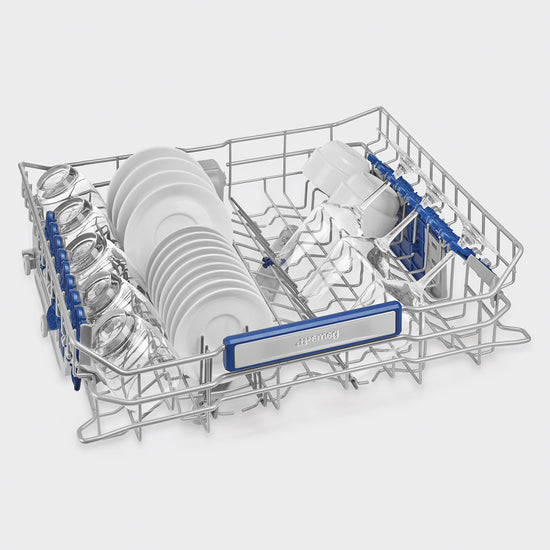

Upper Basket:With 3 foldable racks

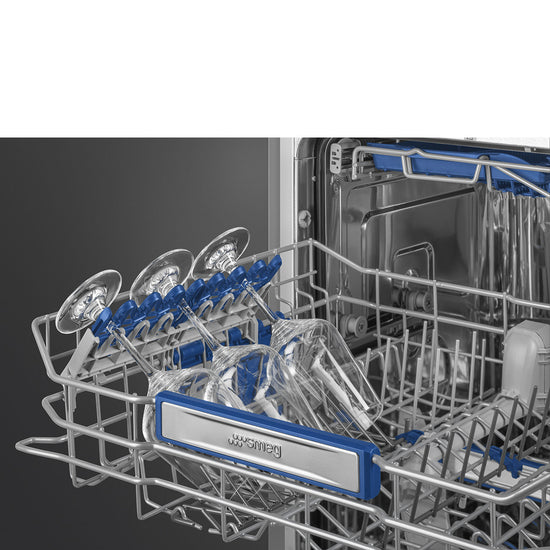

Glass holder:Yes
Height adjustment of the upper basket:On three levels (5 cm)
Sliding Guides Extra Glide:Yes

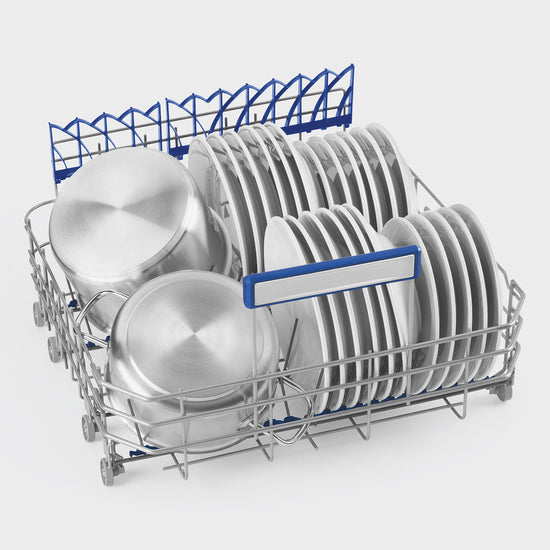

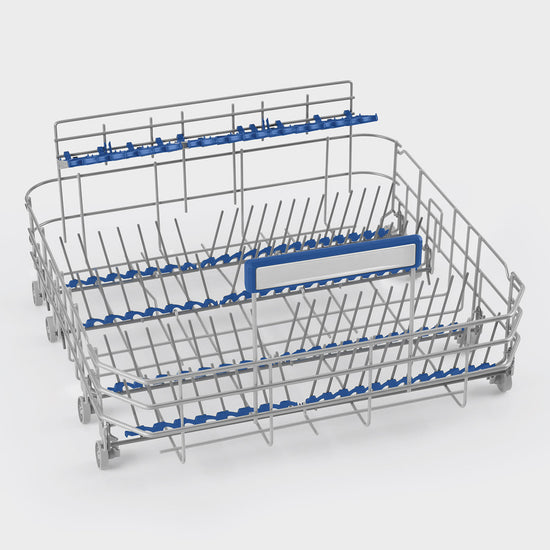

Lower Basket:With 4 foldable racks
Largest loadable dish in upper basket:19,0 cm
Lower basket with anti-drip inserts:Yes
Largest loadable dish in lower basket:30,0 cm
Colour Inner Components:Blue

TECHNICAL FEATURES

The Planetarium washing system, with high rotations per minute, guarantees complete coverage of the tank, thanks to the simultaneous rotation of base and sprayers, and excellent washing results. The Aquatest sensor is an electronic sensor that measures the degree of water transparency at the end of the initial soaking phase. ased on the values measured, the sensor sets the most suitable programme, thus obtaining the best washing results with the minimum amount of water. Activelight is an led light which projects a red spot onto the floor beneath the dishwasher when the appliance is in use. The FlexiFit hinges allow the kitchen panel to slide over the dishwasher door, allowing a minimum kitchen plinth height of 5 cm. Total Acquastop: In addition to the partial Acquastop protection present in all Smeg dishwashers, some models have an electronic device fitted to the water intake hose, which monitors water levels in the machine, detects leaks in the hose and switches off the water supply immediately when necessary. Installation in column: Installation in column The work aimed at continuous improvement has allowed the creation of the second generation of the Inverter motor 2.0, characterised by greater efficiency and durability over time,
which allows very high performance and a lower energy consumption and noise level.
Controls:Electronic
Display:Delayed start, Programme time indicator, Time to end indication, Dynamics programme time indicator, Consumptions
Door opening system:Yes
Display type:LED display
Salt light indicator:Light
Rinse aid indicator:Light
End of cycle indicator:ActiveLight
Washing system:Planetarium
Drying system:Natural condenser drying, with Dry Assist + automatic door opening system at the end of the cycle
Motor:Inverter 2.0
Third spray arm:Single
Water softener:With electronic setting
Turbidity sensor Aquatest:Yes

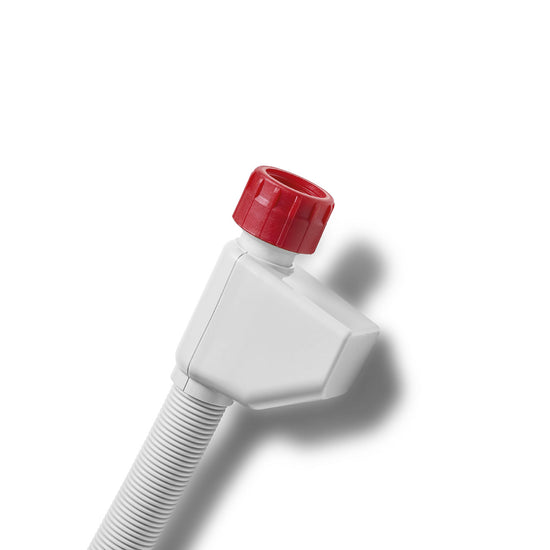

Flood protection system:Total Acquastop
Water supply:Single; cold/hot water max. 60°C - energysave with hot water up to 35%
Max water hardness:100°fH;58°dH
Steam protection:In plastic
Internal light:With White led
Tub material:Stainless steel
Filter:Stainless steel
Concealed heating element:Yes
Min. and max plinth height:50 - 215 mm
Min. and max. frontal panel weight:2 - 11 kg
Hinges:Self balancing, Sliding, FLEXIFIT
Can be installed in-column:Yes
Adjustable feet:7cm, from 820 to 890 mm
Back feet adjustable from front:Yes

PERFORMANCE / ENERGY LABEL NEW 2019

Noise Level: Excellent insulation and special devices keep noise to a minimum. System WaterSave ensures the best washing results with minimal water consumption depending on the model of dishwasher. 14 place settings: Number of place settings. Energy efficiency class B
Energy Efficiency Class:B
Energy consumption [per 100 cycles, based on the eco programme]:64 KWh
Rated capacity (ps):14
Water consumption [per cycle]:9.0 litres
Programme duration:4:25 h:min
Airborne acoustical noise emissions:42 dB(A) re 1 pW
Airborne acoustical noise emission class:B
Energy efficiency Index (EEI):37.8

ELECTRICAL CONNECTION

Connected power:1800 W
Voltage:220-240 V
Type of connection:Single-phase
Frequency (Hz):50 Hz
Power supply cable length:140 cm

FEATURES ATTRIBUTES

Noise level:40 - 44 dB(A)

LOGISTIC INFORMATION

Dimensions of the product HxWxD (mm):818x598x545
Net weight (kg):45.000 kg
Gross weight (kg):47.000 kg
