SILENT PROGRAM
The hydraulic system, the shape of the bottom of the chamber and the use of increasingly high-performance motors means that the noise of the washing cycle is reduced by up to -2 dB when this program is selected.
SELF CLEAN PROGRAM
An automatic program designed for cleaning and maintenance of the machine.
FULL EXPRESS PROGRAM
Fast washing and drying program that takes only 60 minutes. Perfect for everyday use.
EXPRESS 27' PROGRAM
Designed especially for lightly soiled dishes to be washed immediately after use, the quick program washes in just 27 minutes.

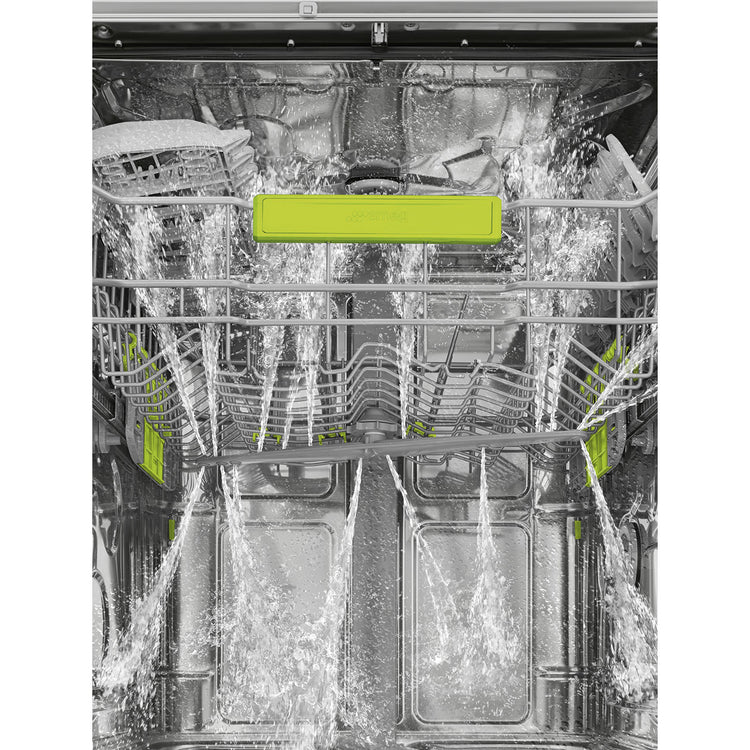

ORBITAL WASHING SYSTEM
This washing system consists of a double spray arm with a simultaneous contra-rotating action that distributes water evenly throughout the chamber to ensure perfect results

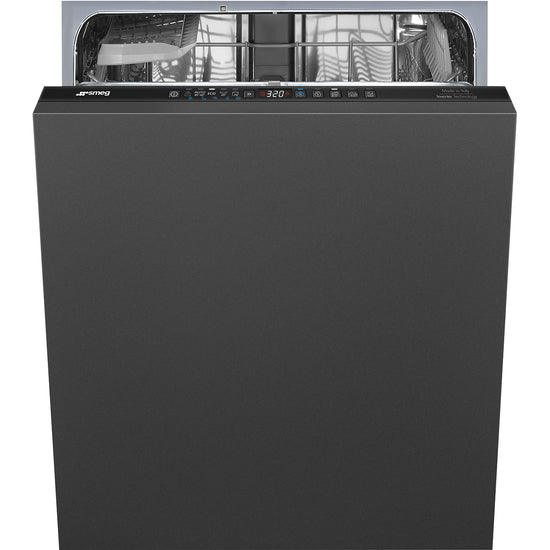

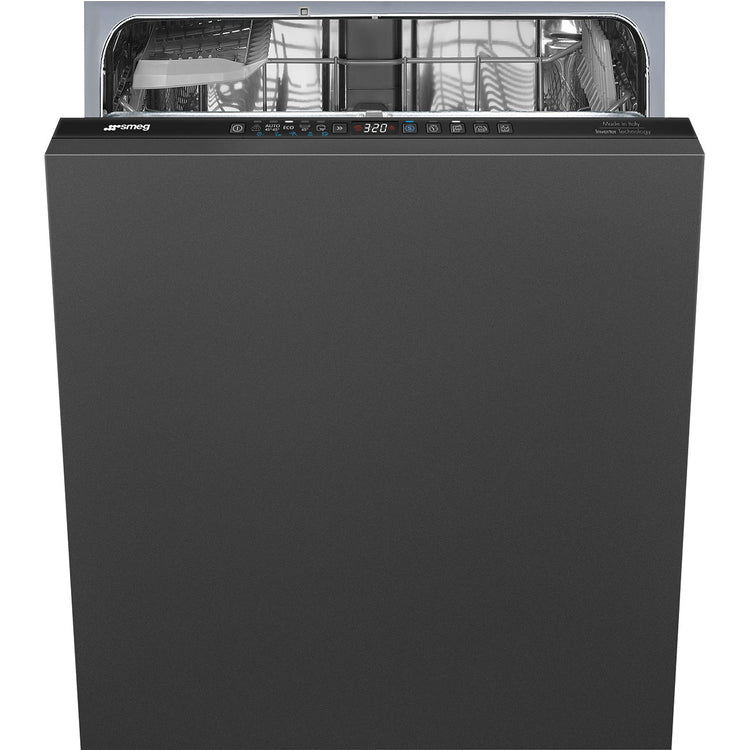

TYPE
82 cm high 13 place settings: Number of place settings.
Product Family:Dishwashers
Commercial height:82 cm
Number of place settings:13
Installation:Fully-integrated built-in
Commercial width:60 cm
Kitchen panel:Not supplied
EAN code:8017709306847
AESTHETICS
Color:Black
Finishing:Black
Aesthetic:Universale
Front panel colour:Black
Door type:Galvanized
LED/display colour:White and blue
Buttons colour:Black
PROGRAMME / FUNCTIONS
Eco: Eco, this economic wash programme uses a low amount of water and energy in order to provide the most environmentally friendly cleaning option. SILENT: Wash cycle suitable for normally soiled dishes, even with dried-on residues. Ensures maximum noise reduction and is therefore ideal if you wish to run it during the night. Quick wash cycle for normally soiled mixed loads such as dishes and pans, even with dried-on residues.
Dishes are washed and dried in 60 minutes. Soak programme: The soak programme provides a rinse to prevent dirt from drying. Dishwasher cleaning cycle. The cycle should be started with the machine empty, without dishes.
It is recommended to run the program every 2-3 months, using special dishwasher detergents. Auto 45°- 65°: The auto programme regulates the length of a cycle depending on the need for a pre-wash and the number of rinses required. Crystals: The Crystals programme is dedicated to delicate dishes such as glasses and china. Mix: The Mix programme is suitable for mixed crockery and everyday pots and pans, without any particular incrustation. Ultraclean: The Ultraclean option performs a final rinse at a high temperature of 70°c eliminating virtually all bacteria. HYGIENE 99.9% High-temperature washing programme. The 75° rinse guarantees the removal of 99.9% of germs and bacteria. Express 27': The Express 27' programme is a quick wash cycle, at low temperatures, for lightly soiled dishes.
N. of programmes:10+1
Soak:Yes
Express 27':Yes
Full express - 60 minutes:Yes
ECO:Yes
Quiet (-2 dB):Yes
Auto sensor 45-65:Yes
Mix:Yes
Intense:Yes
Hygiene 99,9%:Yes
Self clean:Yes
Crystal:Yes
Washing temperatures:38, 45, 50, 55, 65, 70, 75 °C
OPTIONS
Delay Timer: Option to postpone the start of the desired programme by up to 24 hours in order to programme the dishwasher to run at the desired time. Allows you to enable additional programs when selected together with any wash cycle. After having selected the required wash cycle, press the button ( FlexiZone: The ½ load flexizone allows you to wash a reduced load saving energy, water and time and there are no restrictions on where the items are placed. The Dry Assist + option, in addition to saving energy, ensures perfect drying of the dishes by opening the door automatically at the end of the washing cycle.
Dry Assist+ option:Yes
Delay timer option:Up to 24 hours
1/2 load FlexiZone option:Yes
Special programs option:Yes
BASKETS
To improve the drying of dishes without leaving stains.
N° baskets:2
Basket colour:Grey
Basket components colour:Grey
Handle:In plastic on upper and lower basket

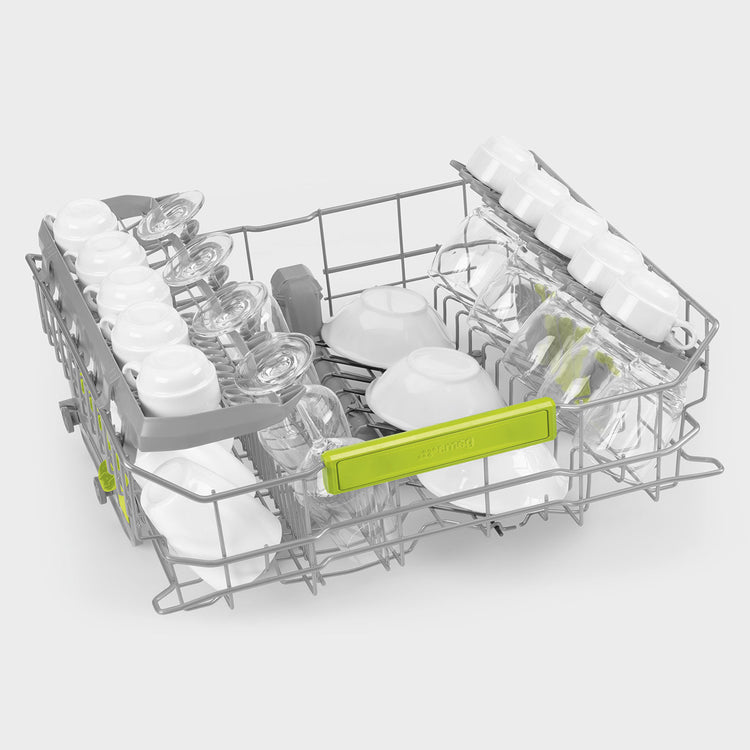

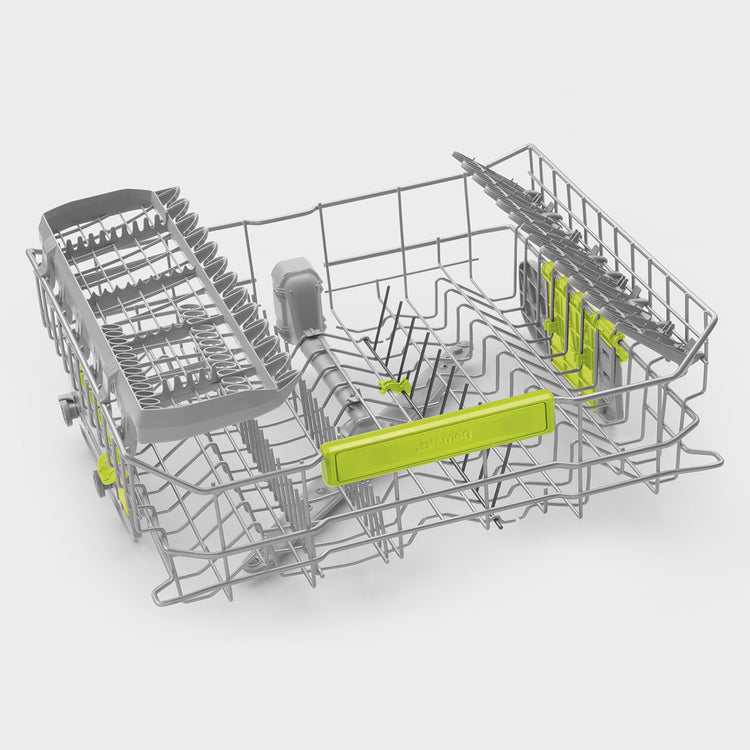

Upper Basket:With 1 foldable rack
Glass holder:Yes
Height adjustment of the upper basket:On three levels (5 cm)

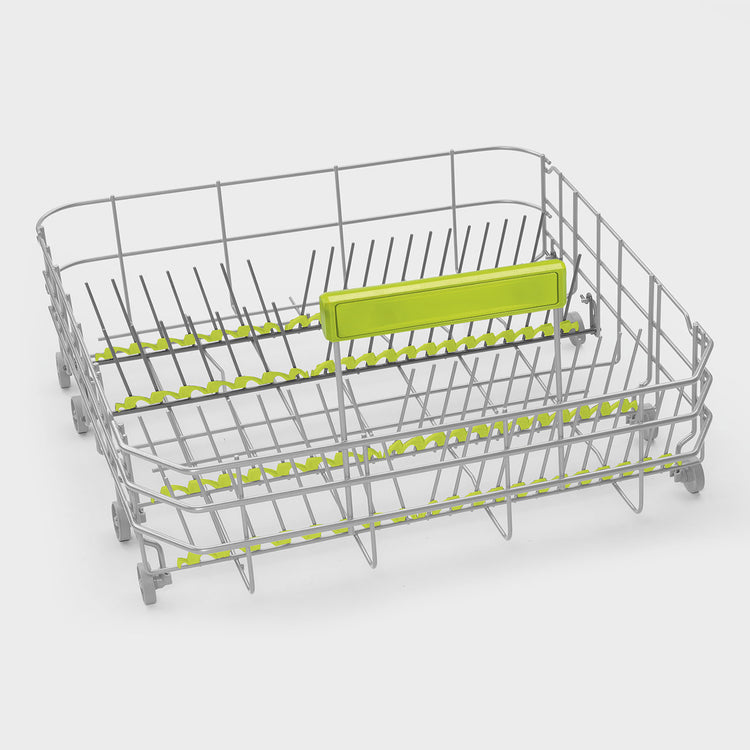

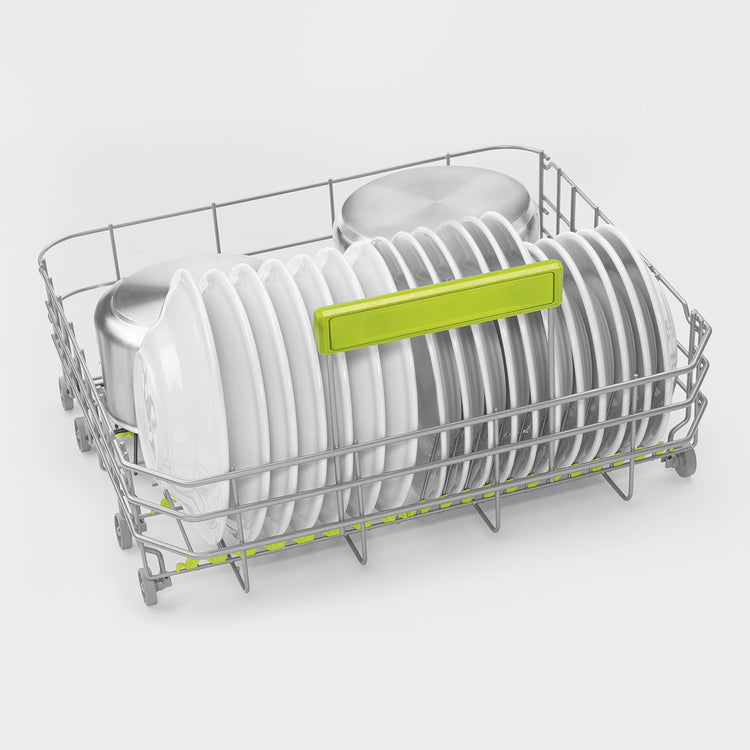

Lower Basket:With 2 foldable racks
Largest loadable dish in upper basket:25,0 cm
Lower basket with anti-drip inserts:Yes
Largest loadable dish in lower basket:30,0 cm

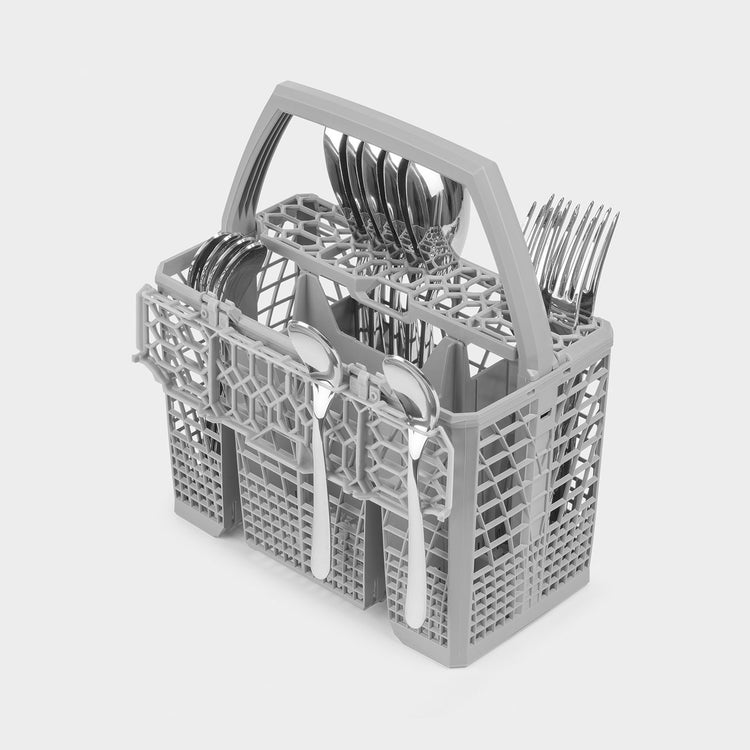

Cutlery basket:Yes
Colour Inner Components:Green
TECHNICAL FEATURES

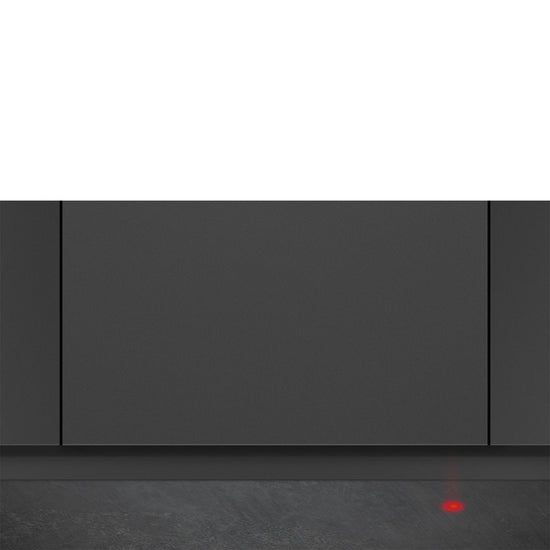

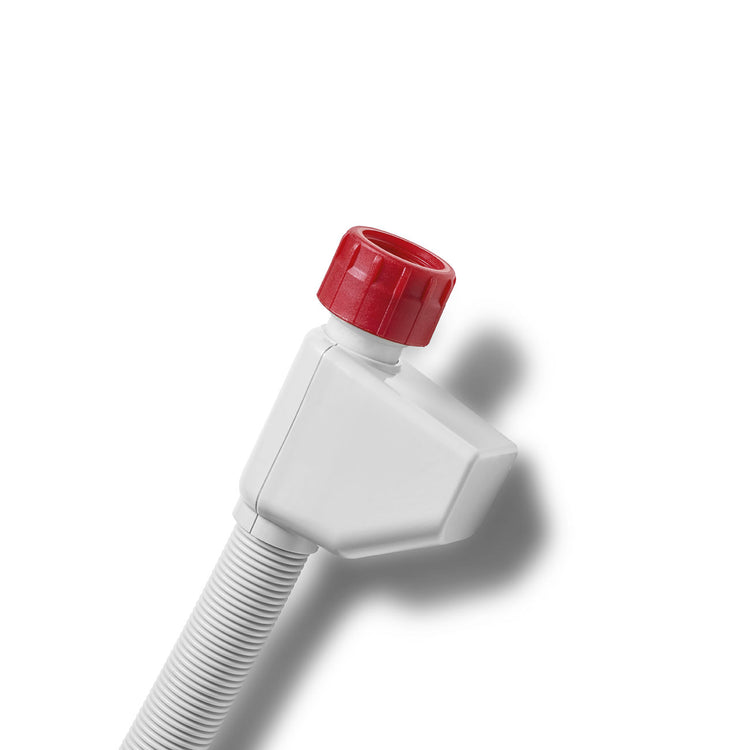

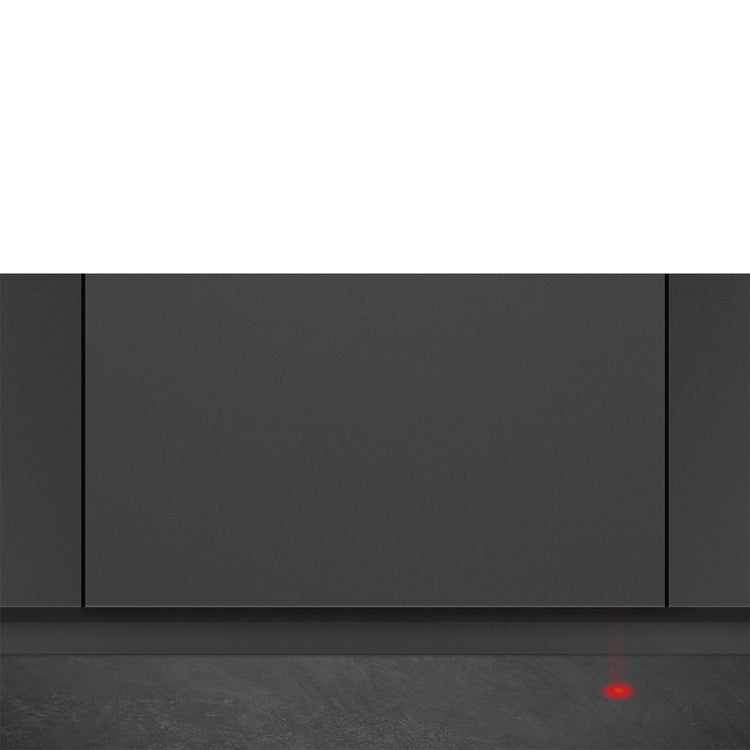

Orbital wash system distributes water evenly throughout the 60cm dishwasher cavity, directing water with precision to ensure an excellent wash. The Aquatest sensor is an electronic sensor that measures the degree of water transparency at the end of the initial soaking phase. ased on the values measured, the sensor sets the most suitable programme, thus obtaining the best washing results with the minimum amount of water. Activelight is an led light which projects a red spot onto the floor beneath the dishwasher when the appliance is in use. Total Acquastop: In addition to the partial Acquastop protection present in all Smeg dishwashers, some models have an electronic device fitted to the water intake hose, which monitors water levels in the machine, detects leaks in the hose and switches off the water supply immediately when necessary. The work aimed at continuous improvement has allowed the creation of the second generation of the Inverter motor 2.0, characterised by greater efficiency and durability over time,
which allows very high performance and a lower energy consumption and noise level.

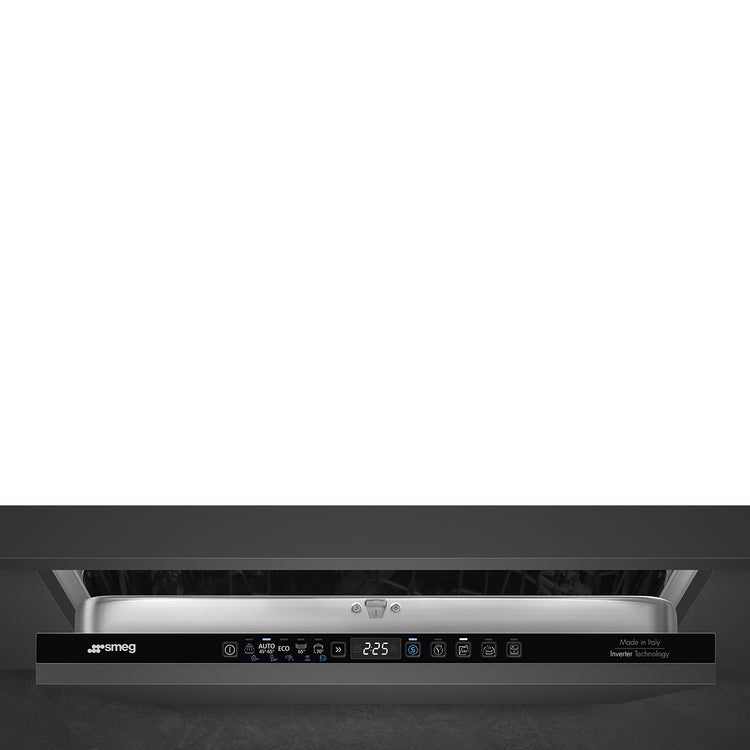

Controls:Electronic
Display:Delayed start, Programme time indicator, Time to end indication
Door opening system:Yes
Display type:LED display (3 digit)
On/off indicator:Yes
Salt light indicator:Light
Rinse aid indicator:Light
End of cycle indicator:ActiveLight
Washing system:Orbital
Drying system:Natural condenser drying, with Dry Assist + automatic door opening system at the end of the cycle
Motor:Inverter 2.0
Third spray arm:Single
Water softener:With electronic setting
Turbidity sensor Aquatest:Yes
Flood protection system:Total Acquastop
Water supply:Single; cold/hot water max. 60°C - energysave with hot water up to 35%
Max water hardness:100°fH;58°dH
Steam protection:In plastic
Tub material:Stainless steel
Filter:Stainless steel
Concealed heating element:Yes
Min. and max plinth height:100 - 228 mm
Min. and max. frontal panel weight:2 - 9 kg
Hinges:Self balancing with fixed hinges
Adjustable feet:7cm, from 820 to 890 mm
Back feet adjustable from front:Yes
PERFORMANCE / ENERGY LABEL NEW 2019
Noise Level: Excellent insulation and special devices keep noise to a minimum. System WaterSave ensures the best washing results with minimal water consumption depending on the model of dishwasher. 13 place settings: Number of place settings. Energy efficiency class C
Energy Efficiency Class:C
Energy consumption [per 100 cycles, based on the eco programme]:73 KWh
Rated capacity (ps):13
Water consumption [per cycle]:8.5 litres
Programme duration:4:40 h:min
Airborne acoustical noise emissions:47 dB(A) re 1 pW
Airborne acoustical noise emission class:C
Energy efficiency Index (EEI):43.8
ELECTRICAL CONNECTION
Connected power:1800 W
Voltage:220-240 V
Type of connection:Single-phase
Frequency (Hz):50 Hz
Power supply cable length:140 cm
FEATURES ATTRIBUTES
Noise level:45 - 47 dB(A)
LOGISTIC INFORMATION
Dimensions of the product HxWxD (mm):818x598x545
Net weight (kg):42.000 kg
Gross weight (kg):44.000 kg
