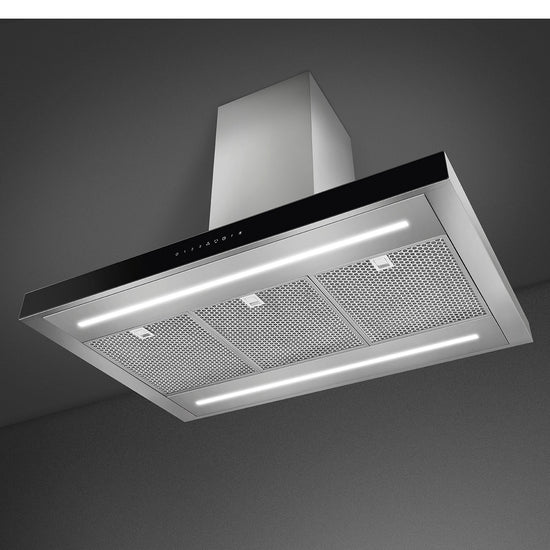

Hota Smeg KBTI9L4VN

CLEAN AIR

The 24h air exchange function makes the hood work for 10 minutes every hour at very low speed and therefore without noise for a total of 24 hours in order to purify the air of the house, with low energy impact.

ADJUSTABLE LIGHT INTENSITY

With the Dimmering function it is possible to raise or lower the intensity of the hood light by holding down the light button.

INTENSITIVE FUNCTION

The intensive function allows to operate the hood at maximum power, to speed up the elimination of the most persistent odors and to have a purified environment.

SPECIAL ATMOSPHERE

The Tunable white function allows you to adapt the hood light to any environment, from cold light 5,700 K ° to warm light 3,000 K °, the best match with the home lighting system.

TYPE

Product family:Hood
Hood Type:Decorative island hood
Hood width:90 cm
Extraction:Extraction
Electronic control:Yes
EAN code:8017709305741

AESTHETICS

Colour:Stainless steel
Finishing:Satin
Aesthetic:Universale
Design:T flat
Material:Stainless Steel + Glass
Type of steel:Brushed

PROGRAMME / FUNCTIONS

Intensive/turbo setting: when extra fast extraction is required. 24h: When selected this function refreshes the air for c. 10 minutes every hour over a 24 hour period, at minimum speed and an imperceptible noise level. Switch off automatically: A special setting, to run after the end of cooking for a pre-set time and then switch off automatically. Connection between hob and hood
No. of speeds:3
Intensive speed:Yes
24h air filter function:Yes
Time-setting options:Automatic switch-off
Auto-vent 2.0:Sì

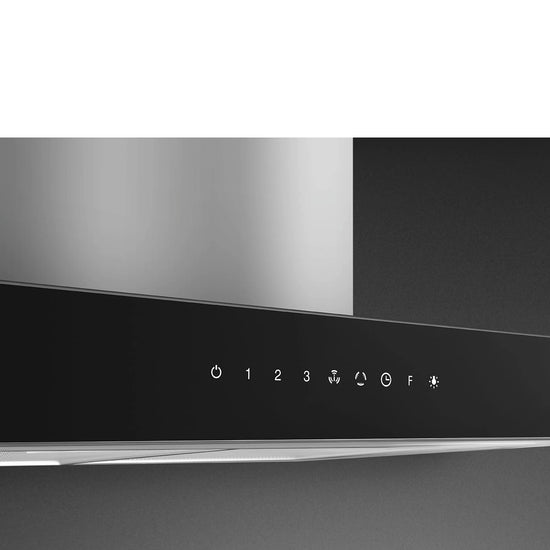

CONTROLS
Touch controls: Easy to use touch controls allow the appliance to be programmed at the touch of a button.
Control setting:Touch control
Led color:White

TECHNICAL FEATURES

Dimmering Lights Filters: Model has filters to help remove grease from the steam emanating from the pans during cooking. Tunable white from warm to cold Lights: All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen. Warning light(s): to advise when filters need changing.
No. of lights:2
Light type:LED
Light Power:7.3 W
Dimmer mode:Yes
Light color temperature range:3000° - 5700° °K
Free outlet maximum capacity:820 m³/h
Motor power:275 W
No. of filters:3
Anti-grease filters:Aluminium
Filter replacement indicator:Yes
Minimum distance from GAS hob:650 mm
Minimum distance from ELECTRIC hob:650 mm
Vent outlet:150 mm
Non return valve:Yes

PERFORMANCE / ENERGY LABEL

A: Product drying performance, measured from A+++ to D / G depending on the product family
Energy efficicency class ( EEC):A
Fluid Dynamic Efficiency class (FDEC):A
Grease Filtering Efficiency Class (GFEC):C
Lighting Efficiency Class (LEC):B
Annual Efficiency Consumption (AEChood):49 kWh/a
Fluid Dynamic Efficiency (FDE):35.4
Lighting Efficiency (LE):23.5 lux/W
Grease Filtering Efficiency (GFE):77.4 %
Air flow at minumum speed (Qmin):280 m³/h
Air flow at maximum speed (Qmax):626 m³/h
Air flow at boost speed (Qboost):778 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin):47 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax):69 dB(A)
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost):73 dB(A)
Power consumption in stand-by mode (Ps):0.38 W
Energy Efficiency Index:46.4
Measured air flow rate at best efficiency point (Qbep):397 m³/h
Measured air pressure at best efficiency point (Pbep):474 Pa
Measured electric power input at best efficiency point (Wbep):175 W
Nominal Power consumption of the light system (WL):15 W
Average illumination of the light on the cooking surface (Emiddle):348 lux
Sound power level at highest setting (Lwa):69 dB(A)

ELECTRICAL CONNECTION

Voltage:220-240 V
Frequency (Hz):50-60 Hz
Power supply cable length:1500 mm

SPEED 1

Extraction rate IEC 61591:280 m³/h
Noise level IEC 60704-2-13:48 dB(A)
Power:154 W

SPEED 2

Extraction rate IEC 61591:415 m³/h
Noise level IEC 60704-2-13:59 dB(A)
Power:191 W

SPEED 3

Extraction rate IEC 61591:626 m³/h
Noise level IEC 60704-2-13:69 dB(A)
Power:238 W

INTENSIVE SPEED

Extraction rate (IEC 61591):778 m³/h
Noise level IEC 60704-2-13:74 dB(A)
Power:267 W

LOGISTIC INFORMATION

Dimensions of the product (mm):850x900x600
Width:900 mm
Depth (mm):600 mm
Product Height (mm):850 mm
Net weight (kg):27.100 kg
Gross weight (kg):32.900 kg
