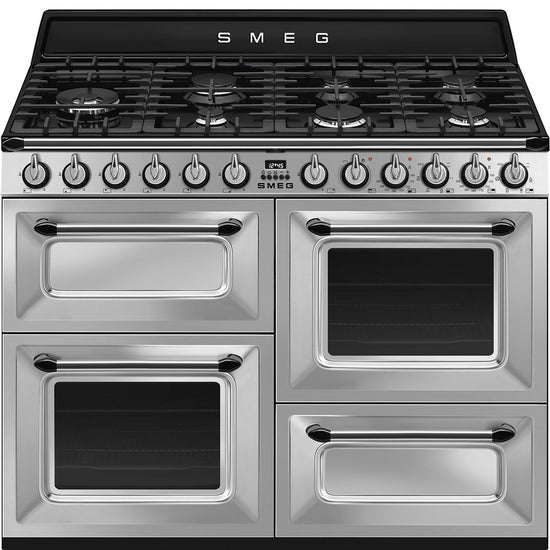

Aragaz Smeg TR4110X-1

CAST IRON GRIDS

The cooktop features solid and sturdy cast iron grids resistant to high temperatures that give a highly professional appearance, as well as guaranteeing excellent performance, unalterable over time.

VICTORIA AESTHETIC

Love for tradition and for details. Victoria is the aesthetic dedicated to those who carry within themselves the call of places out of time, of the warm and enveloping atmospheres of a country house where the passion for good food is expressed in the attention to detail.

TYPE

Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity.
Product Family:Cooker
Cooker size:110x60 cm
Hob energy type:Gas
N. of ovens:3
Hob type:Gas
Type of main oven:Thermo-ventilated
Type of second oven:Fan assisted
Cleaning system:Vapor Clean
EAN code:8017709295066

AESTHETICS

Heavy duty cast iron pan stands: for maximum stability and strength.
Colour:Stainless steel
Finishing:Satin
Aesthetic:Victoria
Design:Victoria
Material:Enamelled
Door:With frame
Command panel finish:Stainless steel
Hob colour:Black enamel
Handle:Smeg Victoria
Controls colour:Stainless steel
Upstand:Yes
Display:electronic 5 buttons
Type of pan stands:Cast Iron
Glass type:Stopsol
Handle Colour:Brushed stainless steel
Control knobs:Smeg Victoria
No. of controls:12
Plinth:Anthracite
Storage compartment:Drawer

PROGRAMME / FUNCTIONS


Traditional cooking functions

Static: Traditional cooking suitable for the preparation of one dish at a time.
The fan is not active and the heat comes from below and from above at the same time.
Static cooking is slower and more delicate, ideal in order to get well cooked and dry dishes even inside.
Ideal for cooking all types of roasts, fatty meats, bread, filled cakes.Static

Fan assisted: Intense and homogeneous traditional cooking, also suitable for complex recipes.
The fan is active and the heat comes from below and from above at the same time.
Ventilated cooking ensures a faster and more homogeneous result, leaving fragrant foods outside and moister inside.
Ideal for baked pasta, biscuits, roasts and cobblers.Fan assisted

Circulaire: it is the perfect function for cooking all types of dishes in a more delicate way.
The heat comes from the back of the oven and is distributed quickly and evenly
The fan is active. It is also ideal for cooking on multiple levels without mixing smells and flavors.Circulaire

ECO: low energy consumption cooking: this function is particularly suitable for cooking on a single shelf with low energy consumption.
It is recommended for all types of food except those that can generate a lot of moisture (for example vegetables).
To achieve maximum energy savings and reduce time, it is recommended to put the food in the oven without preheating the cooking compartmentEco

Fan assisted base: the mix of fan and lower heating element alone allows to finish cooking foods already cooked on the surface but not internally more quickly.
This system is recommended to finish cooking foods that are already well cooked on the surface, but not internally, which therefore require a moderate higher heat.
Ideal for any type of food.Fan assisted bottom

Cleaning functions

Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity.Vapor clean

Other functions

With the switch on this symbol, no heating is possible even if the thermostat is turned.Defrost

PROGRAMS / FUNCTIONS AUXILIARY OVEN

Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity.

Cooking functions cavity 2:5

Vapor Clean:Yes

Traditional cooking functions, cavity 2

Static: Traditional cooking suitable for the preparation of one dish at a time.
The fan is not active and the heat comes from below and from above at the same time.
Static cooking is slower and more delicate, ideal in order to get well cooked and dry dishes even inside.
Ideal for cooking all types of roasts, fatty meats, bread, filled cakes.Static

Fan assisted: Intense and homogeneous traditional cooking, also suitable for complex recipes.
The fan is active and the heat comes from below and from above at the same time.
Ventilated cooking ensures a faster and more homogeneous result, leaving fragrant foods outside and moister inside.
Ideal for baked pasta, biscuits, roasts and cobblers.Fan assisted

Circulaire: it is the perfect function for cooking all types of dishes in a more delicate way.
The heat comes from the back of the oven and is distributed quickly and evenly
The fan is active. It is also ideal for cooking on multiple levels without mixing smells and flavors.Circulaire

ECO: low energy consumption cooking: this function is particularly suitable for cooking on a single shelf with low energy consumption.
It is recommended for all types of food except those that can generate a lot of moisture (for example vegetables).
To achieve maximum energy savings and reduce time, it is recommended to put the food in the oven without preheating the cooking compartmentEco

Fan assisted base: the mix of fan and lower heating element alone allows to finish cooking foods already cooked on the surface but not internally more quickly.
This system is recommended to finish cooking foods that are already well cooked on the surface, but not internally, which therefore require a moderate higher heat.
Ideal for any type of food.Fan-assisted bottom

Other functions cavity 2

With the switch on this symbol, no heating is possible even if the thermostat is turned.Defrost

PROGRAMS / FUNCTIONS THIRD OVEN

No. of functions third oven:1

OPTIONS MAIN OVEN

Timer:Yes
End of cooking acoustic alarm:Yes
Minimum Temperature:50 °C
Maximum temperature:260 °C

OPTIONS AUXILIARY OVEN

Minimum Temperature:50 °C
Maximum temperature:260 °C

OPTIONS THIRD OVEN

Minimum Temperature:50 °C
Maximum temperature:260 °C

HOB TECHNICAL FEATURES

Ultra rapid burners: Powerful ultra rapid burners offer up to 5kw of power.
Total no. of cook zones:7
1st zone position:Left
2nd zone position:Front left
3rd zone position:Rear left
4th zone position:Front centre
5th zone position:Rear centre
6th zone position:Front right
7th zone position:Rear right
1st zone type:Gas - 2UR (dual)
2nd zone type:Gas - AUX
3rd zone type:Gas - Rapid
4th zone type:Gas - Rapid
5th zone type:Gas - AUX
6th zone type:Gas - Semi Rapid
7th zone type:Gas - Semi Rapid
1st zone power:4.20 kW
2nd zone power:1.00 kW
3rd zone power:2.90 kW
4th zone power:2.90 kW
5th zone power:1.00 kW
6th zone power:1.80 kW
7th zone power:1.80 kW
Type of gas burners:Standard
Burner caps:Matt black enamelled
Automatic electronic ignition:Yes
Gas safety valves:Yes

MAIN OVEN TECHNICAL FEATURES

All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. Air cooling system: to ensure a safe surface temperatures. Triple glazed doors: Number of glazed doors. The capacity indicates the amount of usable space in the oven cavity in litres. Ever Clean Enamel: Ever Clean enamel is applied electrostatically, corner to corner and edge to edge to prevent cracking or cracks over time.
It is a particular pyrolytic enamel, resistant to acids which, in addition to being pleasantly bright, promotes greater cleaning of the oven walls, thanks to its lower porosity.
It is baked at over 850 ° C and slowly polymerized at a scientifically determined rate to ensure uniform depth and strength
Ever Clean enamel creates an impeccable finish both on the inside of the oven and on the trays, making the surfaces of the oven incredibly easy to maintain over time as it reduces the adhesion of fat during cooking The oven cavity has 4 different cooking levels. The inner door glass: can be removed with a few quick movements for cleaning. Side lights: Two opposing side lights increase visibility inside the oven.
Net volume of the cavity:61 l
Gross volume, 1st cavity:70 l
Cavity material:Ever Clean enamel
No. of shelves:4
Type of shelves:Metal racks
No. of lights:1
Light type:Halogen
Light Power:40 W
Fan number:1
Cooking time setting:Start and Stop
Door opening:Side opening
Side opening door:Yes
Removable door:Yes
Full glass inner door:Yes
Removable inner door:Yes
Total no. of door glasses:3
No.of thermo-reflective door glasses:1
Safety Thermostat:Yes
Cooling system:Tangential
Grill type:Electric
Grill elememt:1700 W
Large grill - Power:2700 W
Lower heating element power:1200 W
Upper heating element - Power:1000 W
Circular heating element - Power:2700 W
Temperature control:Electro-mechanical

SECOND OVEN TECHNICAL FEATURES

All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. Tilting grill: the tilting grill can be easily unhooked to move the heating element and clean the roof of the appliance in one simple step. Air cooling system: to ensure a safe surface temperatures. The capacity indicates the amount of usable space in the oven cavity in litres. Triple glazed doors: Number of glazed doors. Ever Clean Enamel: Ever Clean enamel is applied electrostatically, corner to corner and edge to edge to prevent cracking or cracks over time.
It is a particular pyrolytic enamel, resistant to acids which, in addition to being pleasantly bright, promotes greater cleaning of the oven walls, thanks to its lower porosity.
It is baked at over 850 ° C and slowly polymerized at a scientifically determined rate to ensure uniform depth and strength
Ever Clean enamel creates an impeccable finish both on the inside of the oven and on the trays, making the surfaces of the oven incredibly easy to maintain over time as it reduces the adhesion of fat during cooking The oven cavity has 4 different cooking levels. Side lights: Two opposing side lights increase visibility inside the oven. Electronic control: Allows you to maintain temperature inside the oven with the precision 2-3 ° C. This enables to cook meals that are very sensitive to temperature changes, such as cakes, souffles, puddings.
Net volume of the second cavity:61 l
Cavity material:Ever Clean enamel
No. of shelves:4
Type of shelves:Metal racks
No. of lights:1
Light type:Halogen
Light Power:40 W
Door opening:Side opening
Side opening door:Yes
Removable door:Yes
Full glass inner door:Yes
Removable inner door:Yes
No. total door glasses:3
No. thermo-reflective door glasses:1
Safety Thermostat:Yes
Cooling system:Tangential
Grill type:Electric
Tilting grill:Yes
Grill element - power:1700 W
Large grill - Power:2700 W
Lower heating element - power:1200 W
Upper heating element - Power:1000 W
Temperature control:Electro-mechanical

THIRD OVEN TECHNICAL FEATURES

Ever Clean Enamel: Ever Clean enamel is applied electrostatically, corner to corner and edge to edge to prevent cracking or cracks over time.
It is a particular pyrolytic enamel, resistant to acids which, in addition to being pleasantly bright, promotes greater cleaning of the oven walls, thanks to its lower porosity.
It is baked at over 850 ° C and slowly polymerized at a scientifically determined rate to ensure uniform depth and strength
Ever Clean enamel creates an impeccable finish both on the inside of the oven and on the trays, making the surfaces of the oven incredibly easy to maintain over time as it reduces the adhesion of fat during cooking The oven cavity has 2 different cooking levels. All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. The capacity indicates the amount of usable space in the oven cavity in litres. Air cooling system: to ensure a safe surface temperatures. Triple glazed doors: Number of glazed doors. Tilting grill: the tilting grill can be easily unhooked to move the heating element and clean the roof of the appliance in one simple step.
Net volume, 3rd cavity:36 l
Gross volume, 3rd cavity:41 l
Cavity material:Ever Clean enamel
No. of shelves:2
Type of shelves:Metal racks
No. of lights:1
Light type:Incandescent
Light Power:25 W
Door opening:Flap down
Removable door:Yes
Full glass inner door:Yes
Removable inner door:Yes
No. total door glasses:3
No. of thermo-reflective door glasses:1
Safety Thermostat:Yes
Cooling system:Tangential
Grill type:Electric
Tilting grill:Yes
Large grill - Power:2700 W
Temperature control:Electro-mechanical

PERFORMANCE / ENERGY LABEL

A: Product drying performance, measured from A+++ to D / G depending on the product family
Energy efficiency class:A
Energy consumption in forced air convection:2.77 MJ
Energy consumption per cycle in fan-forced convection:0.77 KWh
Energy consumption in conventional mode:3.42 MJ
Energy consumption per cycle in conventional mode:0.95 KWh

PERFORMANCE /ENERGY LABEL - SECOND CAVITY

A: Product drying performance, measured from A+++ to D / G depending on the product family
Energy efficiency class, second cavity:A
Energy consumption in conventional mode, 2 cavity:3.42 MJ
Energy consumption per cycle in conventional mode, cavity 2:0.95 KWh
Energy consumption in forced air convection, cavity 2:3.06 MJ
Energy consumption per cycle in fan-forced convection:0.85 KWh

ELECTRICAL CONNECTION

Electrical connection rating:8400 W
Voltage:220-240 V
Voltage 2 (V):380-415 V
Frequency:50/60 Hz

GAS CONNECTION

Gas connection rating (W):15500 W
Gas Type:G20 Natural gas

LOGISTIC INFORMATION

Width (mm):1100 mm
Product Height (mm):900 mm
Depth (mm):600 mm
Gross weight (kg):147.300 kg
Net weight (kg):128.100 kg
